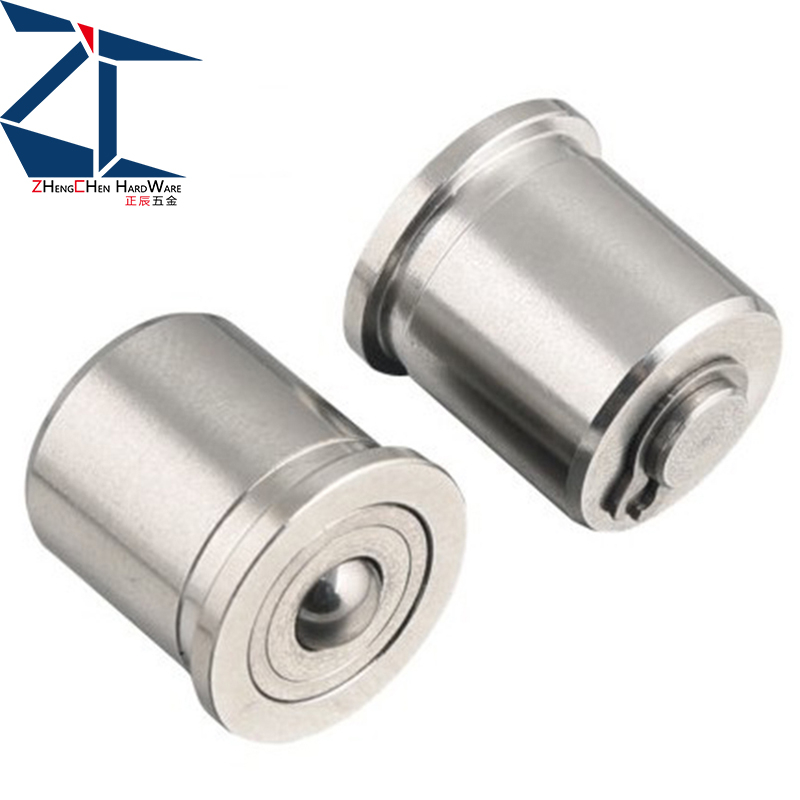

BCHP14 18 22 Press Fit Plunger Ball Rollers

We have achieved smooth ball rotations by surrounding the main ball with multiple sub-ball. A small friction coefficient allows for transporting workpieces with minimal force. With rotations smooth in any 360° direction, changing transport directions is easy.
Availability:
Quantity:
Inquire Add to Basket

A heavy object (SS400 and surface polished) was loaded onto three ball rollers. The force that made the object start moving was measured by a push gauge to calculate the starting coefficient of friction μ

钢珠滚轮-5

Plunger Ball Rollers - Press Fit:Related Image
・Materials
Type [ M ]Material
①Main Body ②Spacer ③Ball ④Casing ⑤Spring ⑥Retaining Ring
ZBCHP
 304 Stainless Steel 304 Stainless Steel 440C Stainless Steel (HRC55~) 304 Stainless Steel 631 Stainless Steel 304 Stainless Steel

Specifications

Part Number
ZBCHP18

Part Number D L L1 d ℓ Load (N)
Type D1 min. max.
ZBCHP 14 16 14 1.5 5.56 1.5 23 30
18 20 17 2.5 8.73 2 24 38
22 24 21.5 3.5 10.32 24 55



download 2d_ZBCHP.zip

Frequently asked questions about this product (FAQ)


Q:What are the different types of rollers according to their installation methods?

A:Bearing type, straight column type, stop screw type, keyway type, shaft type, side bolt fixed type, etc.


Q:Which types of rollers are divided according to their different materials?

A:Polyurethane rollers, rubber rollers, resin rollers, metal rollers, steel ball rollers, etc.


Q:What are the shapes of steel ball rollers?

A:Hexagon bolt type, circular external thread, flange type, cylindrical type, fixed screw type, component type, etc.
