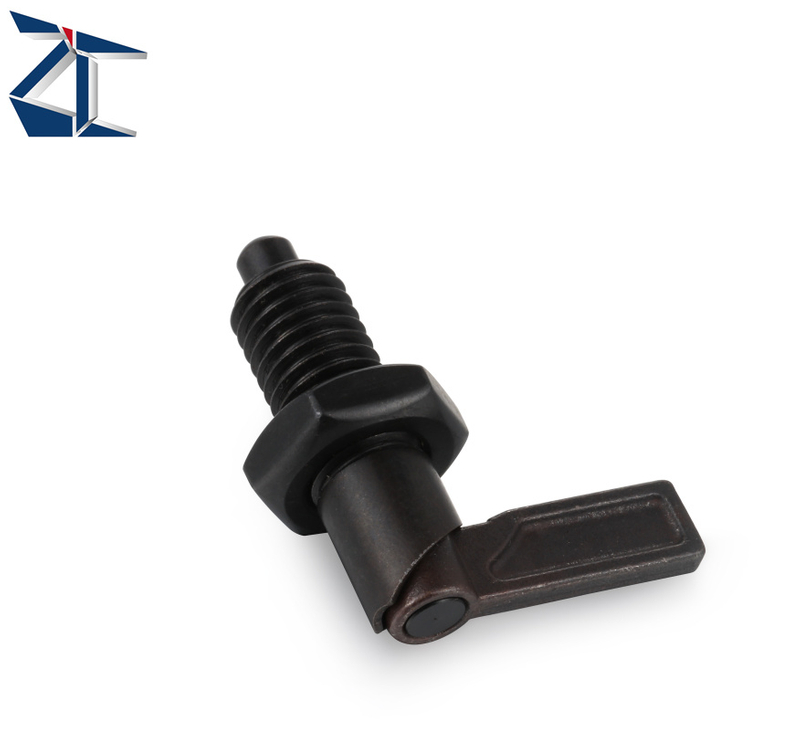

• Type: Lever Type
• Overall Length: Standard
• Mounting Method: Screw-In
• Locking Mechanism: Lever Type
• Operation Knob: Provided
• Type: Lever Type
• Overall Length: Standard
• Mounting Method: Screw-In
• Locking Mechanism: Lever Type
• Operation Knob: Provided
Type | Screw | Lever | Main Body | Pin | Spring | Lock Nut | |||||
[ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ H ]Hardness | [ S ]Surface Treatment | [ M ]Material | [ M ]Material | [ S ]Surface Treatment | ||
ZPMXRB | Coarse Thread | 1045 Carbon Steel | Black Oxide | 1045 Carbon Steel | Black Oxide | 1045 Carbon Steel | 45HRC~ | Black Oxide | 304 Stainless Steel | SWCH Carbon Steel | Black Oxide |
ZPMXRM | Electroless Nickel Plating | Electroless Nickel Plating | Electroless Nickel Plating | Electroless Nickel Plating |
Part Number | Pitch (Coarse) | B | S | L | (L1) | D | H | L2 | Sw | R | Load (N) | Mass (g) | ||
Type | M | min. | max. | |||||||||||
ZPMXRB | 10 | 1.5 | 5 | 5 | 34 | 20 | 24 | 8 | 6 | 17 | 3 | 5 | 9.5 | 22 |
ZPMXRM | 12 | 1.75 | 6 | 6 | 39 | 25 | 30 | 11 | 7 | 19 | 3.5 | 8 | 13 | 33 |
Type | Lever Type | Locking Mechanism | Lever Type | Mounting Method | Screw-In |
---|---|---|---|---|---|
Full Length | Standard | Body Material | 1045 Carbon Steel | Pin Material | 1045 Carbon Steel |
Knob | Presence | Nose Heat Treatment | Hardening |
Type | Screw | Lever | Main Body | Pin | Spring | Lock Nut | |||||
[ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ H ]Hardness | [ S ]Surface Treatment | [ M ]Material | [ M ]Material | [ S ]Surface Treatment | ||
ZPMXRB | Coarse Thread | 1045 Carbon Steel | Black Oxide | 1045 Carbon Steel | Black Oxide | 1045 Carbon Steel | 45HRC~ | Black Oxide | 304 Stainless Steel | SWCH Carbon Steel | Black Oxide |
ZPMXRM | Electroless Nickel Plating | Electroless Nickel Plating | Electroless Nickel Plating | Electroless Nickel Plating |
Part Number | Pitch (Coarse) | B | S | L | (L1) | D | H | L2 | Sw | R | Load (N) | Mass (g) | ||
Type | M | min. | max. | |||||||||||
ZPMXRB | 10 | 1.5 | 5 | 5 | 34 | 20 | 24 | 8 | 6 | 17 | 3 | 5 | 9.5 | 22 |
ZPMXRM | 12 | 1.75 | 6 | 6 | 39 | 25 | 30 | 11 | 7 | 19 | 3.5 | 8 | 13 | 33 |
Type | Lever Type | Locking Mechanism | Lever Type | Mounting Method | Screw-In |
---|---|---|---|---|---|
Full Length | Standard | Body Material | 1045 Carbon Steel | Pin Material | 1045 Carbon Steel |
Knob | Presence | Nose Heat Treatment | Hardening |
Frequently asked questions about this product (FAQ)
1. Can the knob plunger withstand radial force?
No, it can only withstand axial force.
2. What is the function of the spring plunger?
The front end is pin shaped and can be used to eject workpieces or stop blocks.
3. What are the meanings of load min and max?
The load min represents the initial load value, and max represents the load value at the maximum pressure limit of the ball head.
4. What is the anti loosening treatment for the ball head plunger?
Fix using an anaerobic gas adhesive filled in microcapsules. Once loose, it will fail, so it is necessary to use a thread with an anaerobic adhesive. When placed at temperatures exceeding 25 degrees Celsius for 72 hours, the anti loosening effect is the most ideal.
