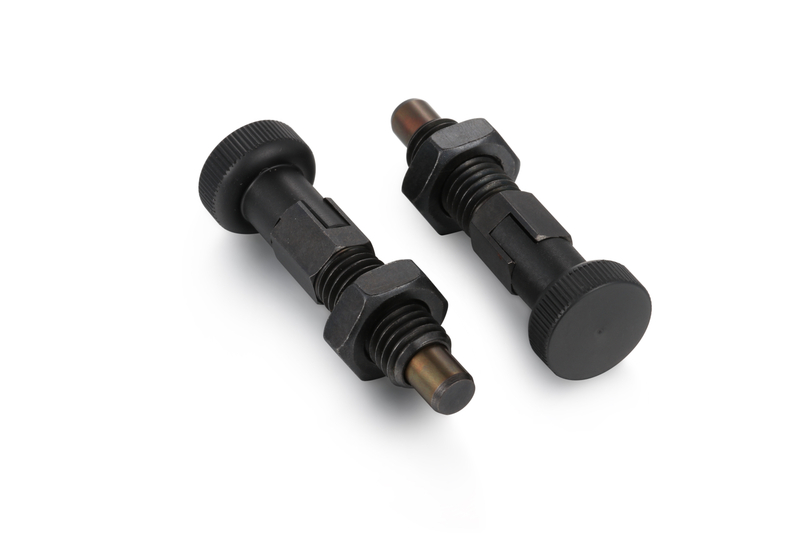

Indexing Plungers Steel, Lock-Out. indexing plungers with lock-out position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. The head of the plunger body is provided with a suitable notch in opposite positions so as to prevent the plunger from accidentally slipping back into its forward position. Indexing, spring and ball plungers and their accessories are also referred to as: spring loaded devices, detent pins, hand retractable pins, spring loaded pins, button handle pins, shackle pins, locating pins, indexing pins, retracting pins, spring loaded pins, receptacles and lanyards, rapid release pins, t-handle release pins, ball chains, self-locking rapid release pins, side thrust pins, thrust pins, spring loaded shells, ball buttons, spring loaded positioning elements, hand retractable spring plungers, lock-out spring plungers, non lock-out plungers, and spacer bushings.
coarse thread and knob nylon black
Indexing Plungers Steel, Lock-Out. indexing plungers with lock-out position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. The head of the plunger body is provided with a suitable notch in opposite positions so as to prevent the plunger from accidentally slipping back into its forward position. Indexing, spring and ball plungers and their accessories are also referred to as: spring loaded devices, detent pins, hand retractable pins, spring loaded pins, button handle pins, shackle pins, locating pins, indexing pins, retracting pins, spring loaded pins, receptacles and lanyards, rapid release pins, t-handle release pins, ball chains, self-locking rapid release pins, side thrust pins, thrust pins, spring loaded shells, ball buttons, spring loaded positioning elements, hand retractable spring plungers, lock-out spring plungers, non lock-out plungers, and spacer bushings.
coarse thread and knob nylon black
Product Overview
Because the knob is processed using a molding process, the cost is reduced, making it at most 42% cheaper than existing similar products of Mismi
·This series of knob plungers (economy type), also known as indexing pins, spring pull pins, etc.
·The knob plunger, also known as the indexing pin, spring pull pin, etc., is a positioning pin that can be manually operated for pin entry and exit.
·Due to the structural characteristics and design purpose of the knob plunger, the main force bearing part is the product pin head, which can withstand shear and bending loads.
The internal connecting rod and handle can only withstand axial tension and cannot withstand radial force, that is, they cannot be pulled out diagonally or horizontally, and cannot be pressed down or lifted up.
Product Features
·The knob plunger operation is simple: the front pin head protrudes and is positioned, and the handle can be pulled and released.
·Flexible installation of knob plunger: suitable for linear and rotary motion mechanisms with positioning requirements, universal thread installation is sufficient, and disassembly is convenient
·Suitable for various occasions such as indexing, positioning, and stop limit of fixtures
usage method
Operating methods for reset and self-locking types
Reset type
The front end is usually in a protruding state.
When pulling out the knob, the front end retracts.
If the knob is released, the front end will restore its protruding state through the action of the built-in spring force.
Reset type
The front end is usually in a protruding state.
When pulling out the knob, the front end retracts.
If the knob is released, the front end will restore its protruding state through the action of the built-in spring force.
Method of using Misumi indexing pin knob plunger
• Self locking type
The front end is usually in a protruding state.
When pulling out the knob, the front end retracts.
If you rotate 90 ° while maintaining the pulled out state, the front end can be locked in a retracted state.
When unlocking, simply rotate 90 ° while maintaining the pulled out state.
If the knob is released, the front end will restore its protruding state through the action of the built-in spring force.
Method of using Misumi indexing pin knob plunger
