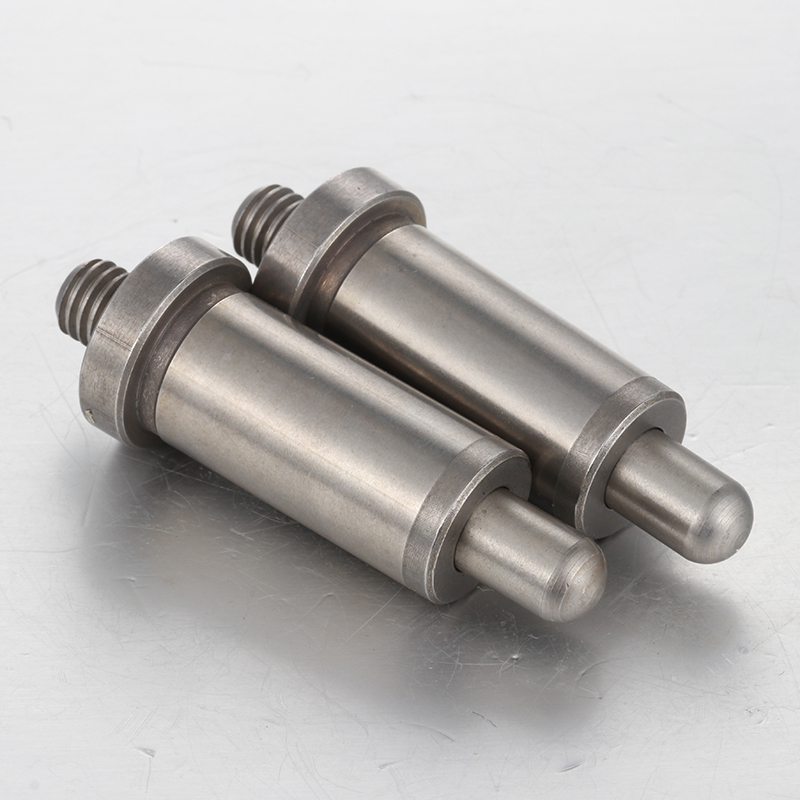

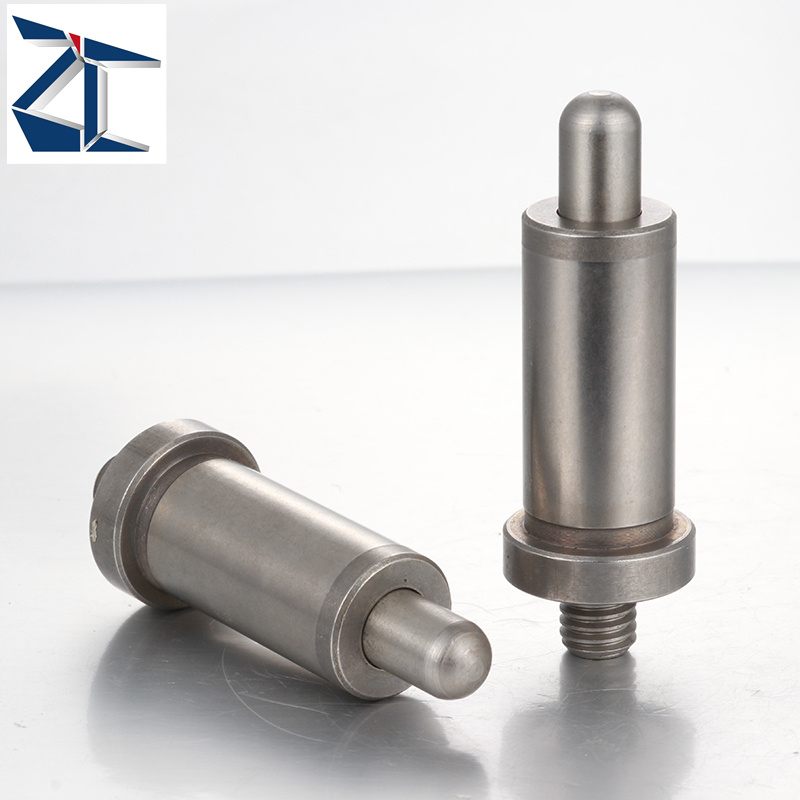

Pulling the knob retracts the center pin; releasing it returns it to its original position via spring force. Use to calculate and adjust jig positions when welding or fuse mounting.
Type | Without Knob | Locking Mechanism | Returning | Mounting Method | Press Fitting |
---|---|---|---|---|---|
Full Length | Standard | Pin Material | 440C Stainless Steel | Knob | No |
Frequently asked questions about this product (FAQ)
Can the knob plunger withstand radial force?
No, it can only withstand axial force.
What is the function of the ball plunger?
The stroke of the front end ball head is specified, which can be used for temporary positioning, indexing, and other purposes of the workpiece.
What is the function of the spring plunger?
The front end is pin shaped and can be used to eject workpieces or stop blocks.
What is the function of the knob plunger?
Knobs and handles can be used to manually move pins in and out, suitable for temporary positioning of workpieces.
What are the meanings of load min and max?
The load min represents the initial load value, and max represents the load value at the maximum pressure limit of the ball head.
