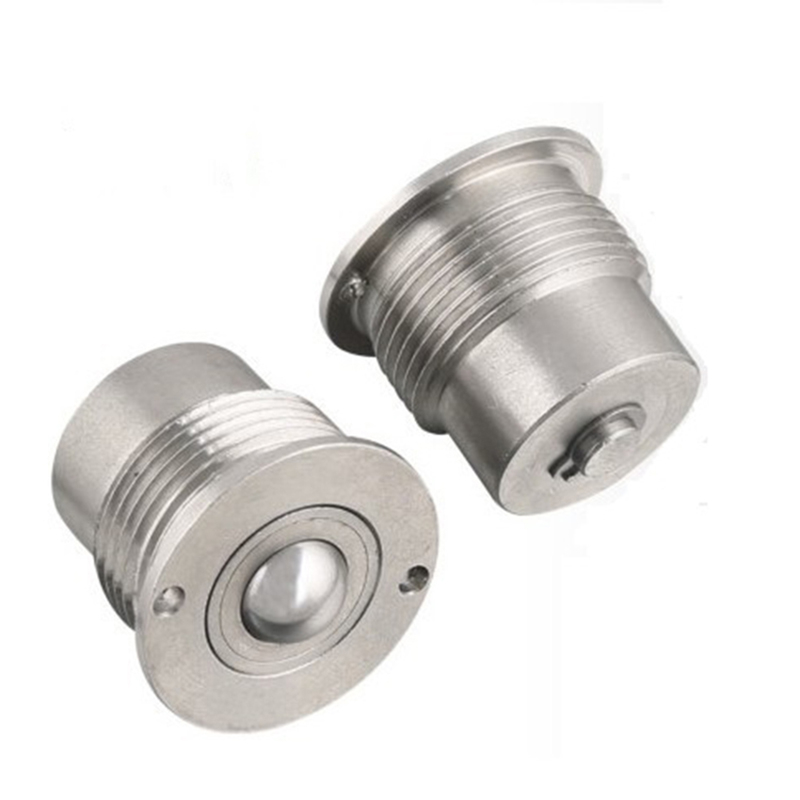

Type: Spring-Loaded
• Body Material: 304 Stainless Steel
• Load Capacity Range (n): 20.1~50.0
• BR With Dedicated Wrench: Provided
Type: Spring-Loaded
• Body Material: 304 Stainless Steel
• Load Capacity Range (n): 20.1~50.0
• BR With Dedicated Wrench: Provided
Type | [ M ]Material | |||||
①Main Body | ②Spacer | ③Ball | ④Casing | ⑤Spring | ⑥Retaining Ring | |
ZBCHP ZBCHPT | 304 Stainless Steel | 304 Stainless Steel | 440C Stainless Steel (HRC55~) | 304 Stainless Steel | 631 Stainless Steel | 304 Stainless Steel |
Part Number |
ZBCHP18 |
Part Number | D | L | L1 | d | ℓ | Load (N) | ||
Type | D1 | min. | max. | |||||
ZBCHP | 14 | 16 | 14 | 1.5 | 5.56 | 1.5 | 23 | 30 |
18 | 20 | 17 | 2.5 | 8.73 | 2 | 24 | 38 | |
22 | 24 | 21.5 | 3.5 | 10.32 | 24 | 55 |
Part Number | M (Fine) | D | D1 | L | L1 | L2 | a | d | P | ℓ | Load (N) | ||
Type | Nominal | min. | max. | ||||||||||
ZBCHPT | 16 | 16x1.5 | 19 | 13.5 | 14 | 1.5 | 9 | 2 | 5.56 | 15.4 | 1.5 | 23 | 30 |
20 | 20x1.5 | 24 | 16.5 | 17 | 2.5 | 10 | 2 | 8.73 | 18.5 | 2 | 24 | 38 | |
24 | 24x1.5 | 28 | 20.5 | 21.5 | 3.5 | 12 | 2.5 | 10.32 | 24 | 24 | 55 |
Type | [ M ]Material | |||||
①Main Body | ②Spacer | ③Ball | ④Casing | ⑤Spring | ⑥Retaining Ring | |
ZBCHP ZBCHPT | 304 Stainless Steel | 304 Stainless Steel | 440C Stainless Steel (HRC55~) | 304 Stainless Steel | 631 Stainless Steel | 304 Stainless Steel |
Part Number |
ZBCHP18 |
Part Number | D | L | L1 | d | ℓ | Load (N) | ||
Type | D1 | min. | max. | |||||
ZBCHP | 14 | 16 | 14 | 1.5 | 5.56 | 1.5 | 23 | 30 |
18 | 20 | 17 | 2.5 | 8.73 | 2 | 24 | 38 | |
22 | 24 | 21.5 | 3.5 | 10.32 | 24 | 55 |
Part Number | M (Fine) | D | D1 | L | L1 | L2 | a | d | P | ℓ | Load (N) | ||
Type | Nominal | min. | max. | ||||||||||
ZBCHPT | 16 | 16x1.5 | 19 | 13.5 | 14 | 1.5 | 9 | 2 | 5.56 | 15.4 | 1.5 | 23 | 30 |
20 | 20x1.5 | 24 | 16.5 | 17 | 2.5 | 10 | 2 | 8.73 | 18.5 | 2 | 24 | 38 | |
24 | 24x1.5 | 28 | 20.5 | 21.5 | 3.5 | 12 | 2.5 | 10.32 | 24 | 24 | 55 |
